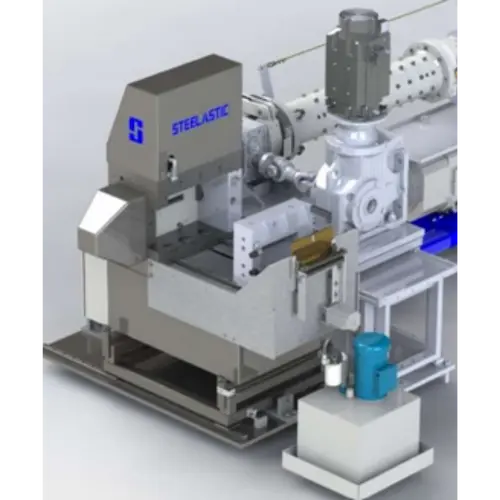

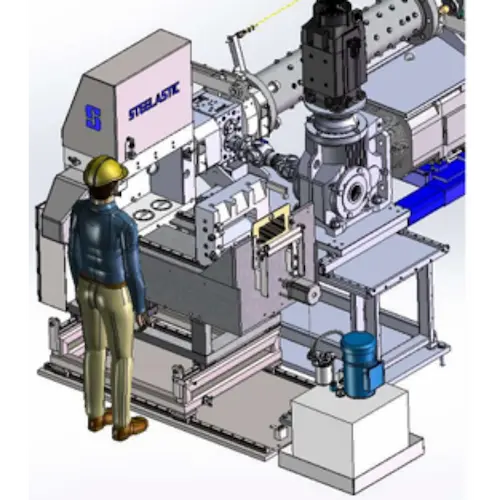

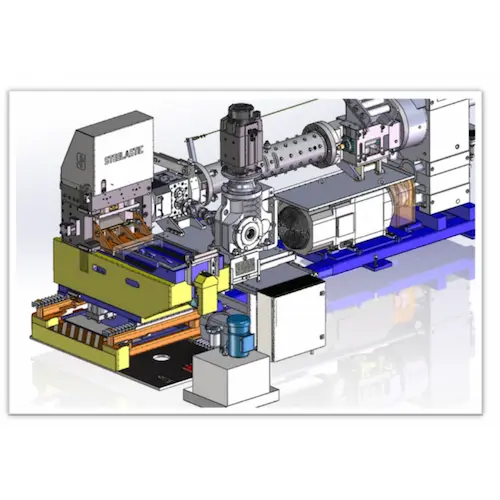

Introducing Steelastic’s range of retrofittable Hydraulic E-Die’s for 6”, 8” & 10” dies. Initiated from the
HMI, Steelastic patented E-dies are opened, closed and clamped automatically, eliminating the need for operators to remove die clamping bolts with pneumatically assisted tooling, and significantly reducing the time to change over cord and compound, providing increased productivity and fast investment payback.
The range of Hydraulic E-dies are fully retrofittable to existing Steelastic steel belt, steel and textile body ply, and steel and textile cap strip systems.
What the Hydraulic E-Die Offers for Your Line
- Ergonomic improvement for operators with opening, closing and clamping automatically initiated from the HMI.
- Uniform die closing force that is not operator/process dependent.
- Significantly reduced changeover times, with die opening and closing within 60 seconds, providing increased productivity.
Key Design Features of the Hydraulic E-Die
- Able to retrofit to existing lines.
- Utilizes existing Steelastic die tooling.
- No product leakage permitted at die split or extruder connection.
- System maintains clamping force without continuous motor operation.
| Technical Specifications | |
|---|---|
| Hydraulic E-Die Sizes | 6″ 8″ 10″ |
| Clamping Force | Normal to Die: 590,000 lbs [267,600 kg-f] Normal to Extruder: 207,000 lbs [94,000 kg] |
| Opening Clearances | Die Half Separation: 28″ / 700mm Extruder Barrel Adaptor Separation: 7.5″ / 190mm |
| Operational Speeds | Unclamping & Opening: 60 seconds Closing and Clamping: 60 seconds |
| Operating Temperature | 80–110°C |
Reach Out for More Information
Enhance the safety and productivity of your Steelastic extrusion-based tire component lines. Contact Steelastic or fill out the form above to find out more.
